What is a 100% area chart?

A 100% area chart stacks every series so the combined total always reaches 100% at every point along the axis, regardless of how the absolute totals actually moved. Each band's thickness at any point shows that series' share of the whole at that moment, which makes shifting composition over time easy to see.

The type is sometimes called a full stacked area chart. Because the total is fixed by design, any band that grows must be growing at the expense of another band shrinking, which is exactly the trade-off the chart is built to reveal.

A worked example

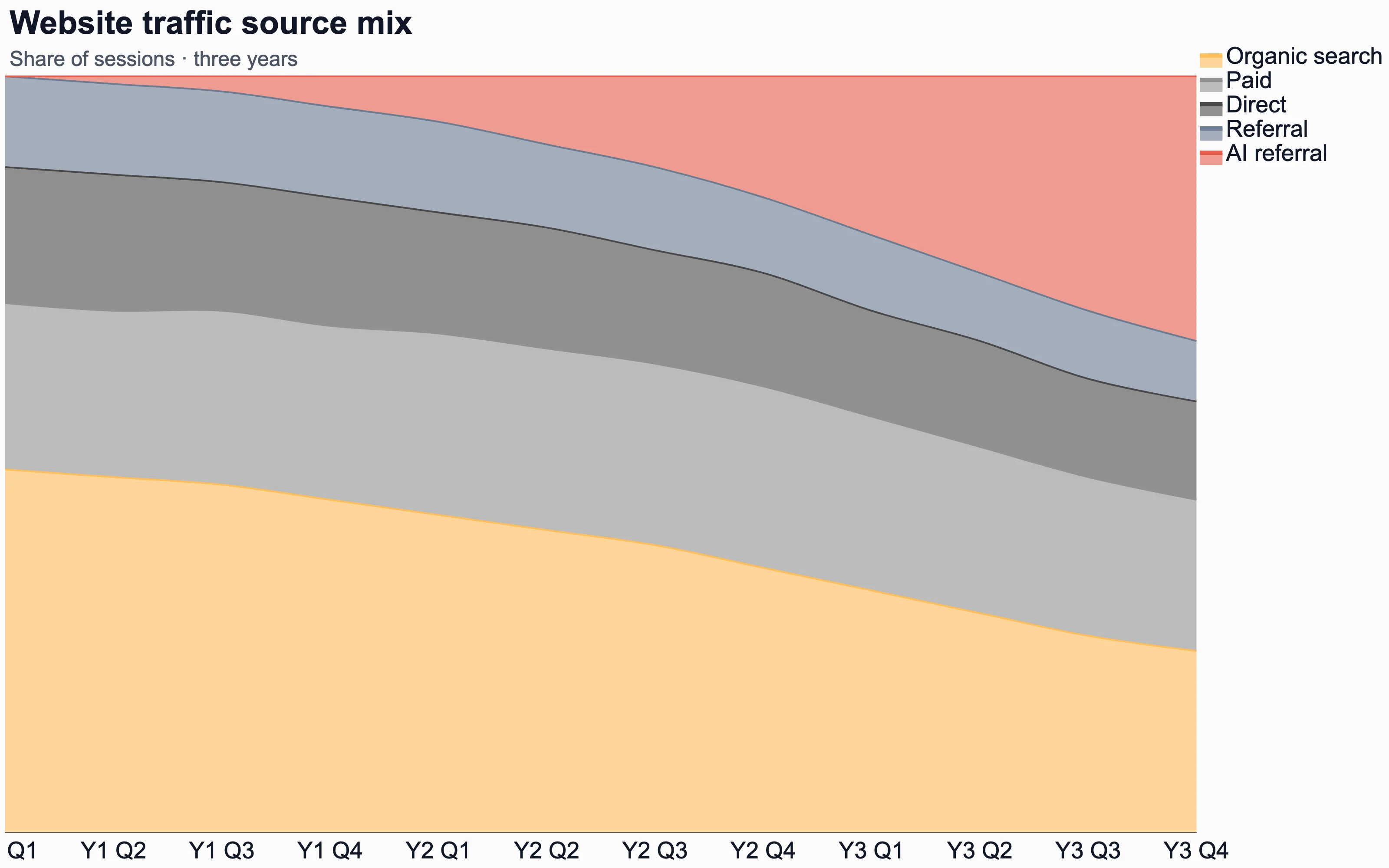

A marketing team tracking website traffic source mix over three years, as AI referral traffic emerges from nothing, might use data like this.

When to use a 100% area chart

• Showing how traffic source mix shifts over several years as a new channel emerges and grows its share.
• Tracking how a portfolio's asset allocation drifts over time, quarter by quarter, as a share of the whole.
• Visualising how a workforce's contract type mix, full-time versus contractor, evolves over multiple years.
• Presenting how revenue mix by geography changes gradually over many periods rather than a handful of discrete ones.

When not to use a 100% area chart

• If you are comparing a handful of discrete periods rather than a continuous trend, a 100% stacked bar chart is the more natural fit.
• If the absolute totals matter as much as the mix, use a regular area chart instead, since this type hides totals by design.

How to read a 100% area chart

Ignore the overall height, since it never changes. Instead, watch each band's thickness move across the chart from left to right. A band that widens is gaining share, a band that narrows is losing it, and because every band sums to 100% at every point, a gain somewhere always means a loss somewhere else.

Best practices

• State the underlying totals nearby, in a subtitle or footnote, since the chart itself only shows relative share.
• Keep band order fixed across the whole period, so a band's position never shifts and confuses the reader.
• Watch for volatile top bands. A thin band sitting at the very top can look unstable even when its actual movement is small, so consider reordering if that band is important.
• Limit bands to four or five, the same guidance as a standard area chart, for legibility.
• Add a label at the point where a new category first appears, since a band starting from zero is easy to miss.
