100% stacked bar chart: definition, examples, and best practices.

What is a 100% stacked bar chart?

A 100% stacked bar chart, also called a full stacked bar or proportional bar, normalises every category to 100%. Segments show share, not absolute value. That is useful when the question is how the mix differs across categories, not which category is biggest.

The trade-off is that underlying totals disappear. State them in a footnote, a companion table, or a second chart if readers will ask for them.

A worked example

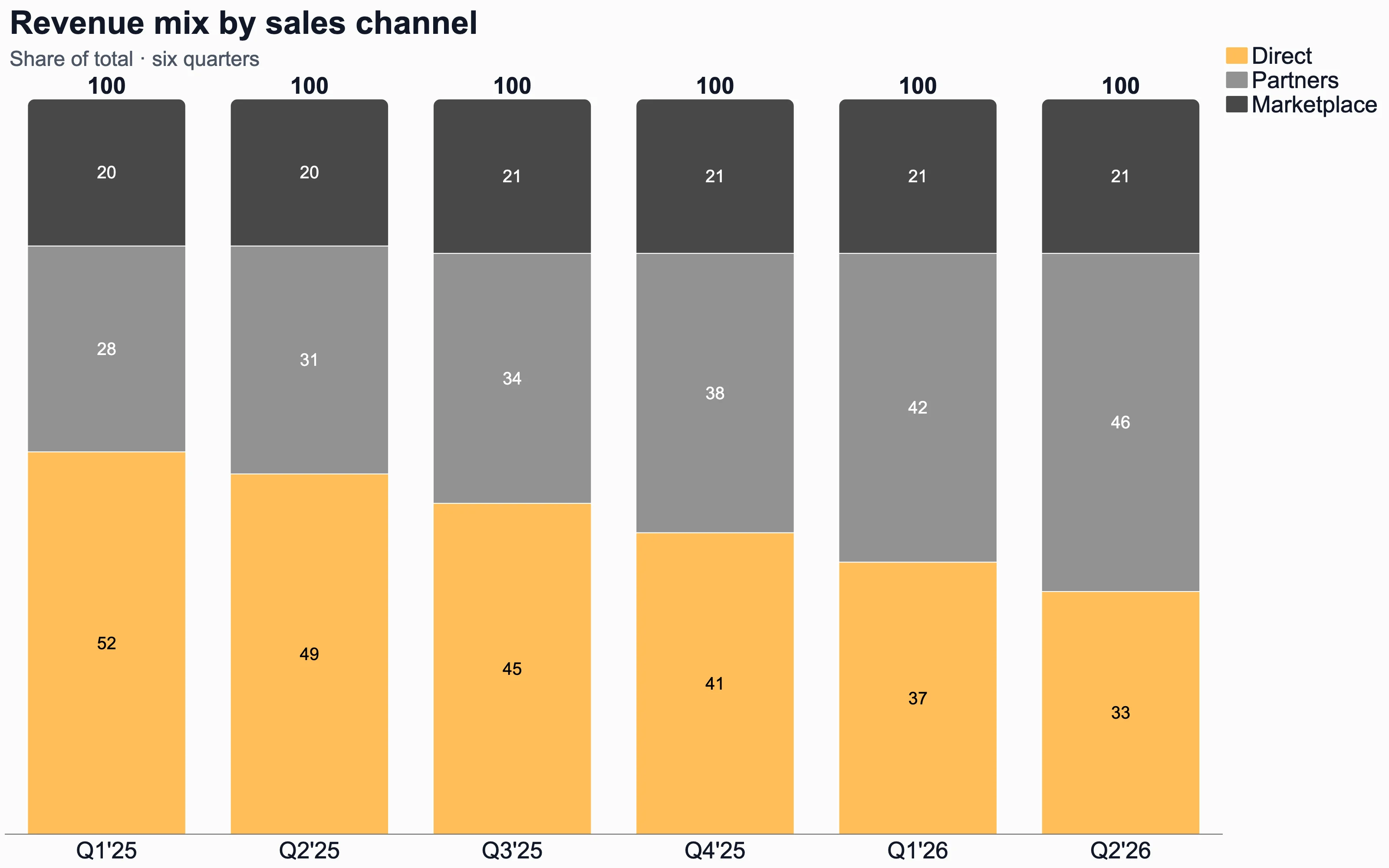

Revenue mix by sales channel across six quarters. Direct sales steadily lose share to partners.

When to use a 100% stacked bar chart

• Comparing channel or product mix across periods when totals vary widely
• Showing how a cost structure differs by business unit
• Tracking share of wallet or share of pipeline by stage across regions
• Any mix comparison where absolute size would hide the composition story

When not to use it

• When absolute totals matter as much as mix, use a stacked bar chart
• When composition moves continuously over time, prefer a 100% area chart

How to read it

Every bar is 100%. Compare the height of matching colours across bars to see how share shifts. Do not read bar height as volume.

Best practices

• State the underlying totals somewhere on the slide, because normalising to 100% hides them
• Put the most stable segment at the base so the volatile share sits where the eye can track it
• Use percentage labels on the segments that drive the narrative
• Keep the same segment order and colours as any companion absolute stacked chart
• Avoid more than five segments or the shares become hard to compare
