Connect Cursor

Wire Cursor to Chartbuddy Hub over local stdio MCP.

Let Cursor do it

You can paste the following into a Cursor agent chat:

Chartbuddy Hub MCP setup guide:
https://chartbuddy.io/hub/docs/connect-mcp/cursor

Separate plaintext pages: /hub/mcp-setup.md · /hub/mcp-setup.json
Typical setup: install Chartbuddy Hub if needed, write ~/.cursor/mcp.json (user/global), refresh MCP, confirm with chartbuddy --mcp-status.

Three steps

1. Install Chartbuddy Hub

Install Chartbuddy Hub and launch it once before you add the server (approve OS security prompts). On macOS, you can also use Help → Connect Cursor… inside Chartbuddy Hub to copy the config.

2. Add a custom MCP in Cursor

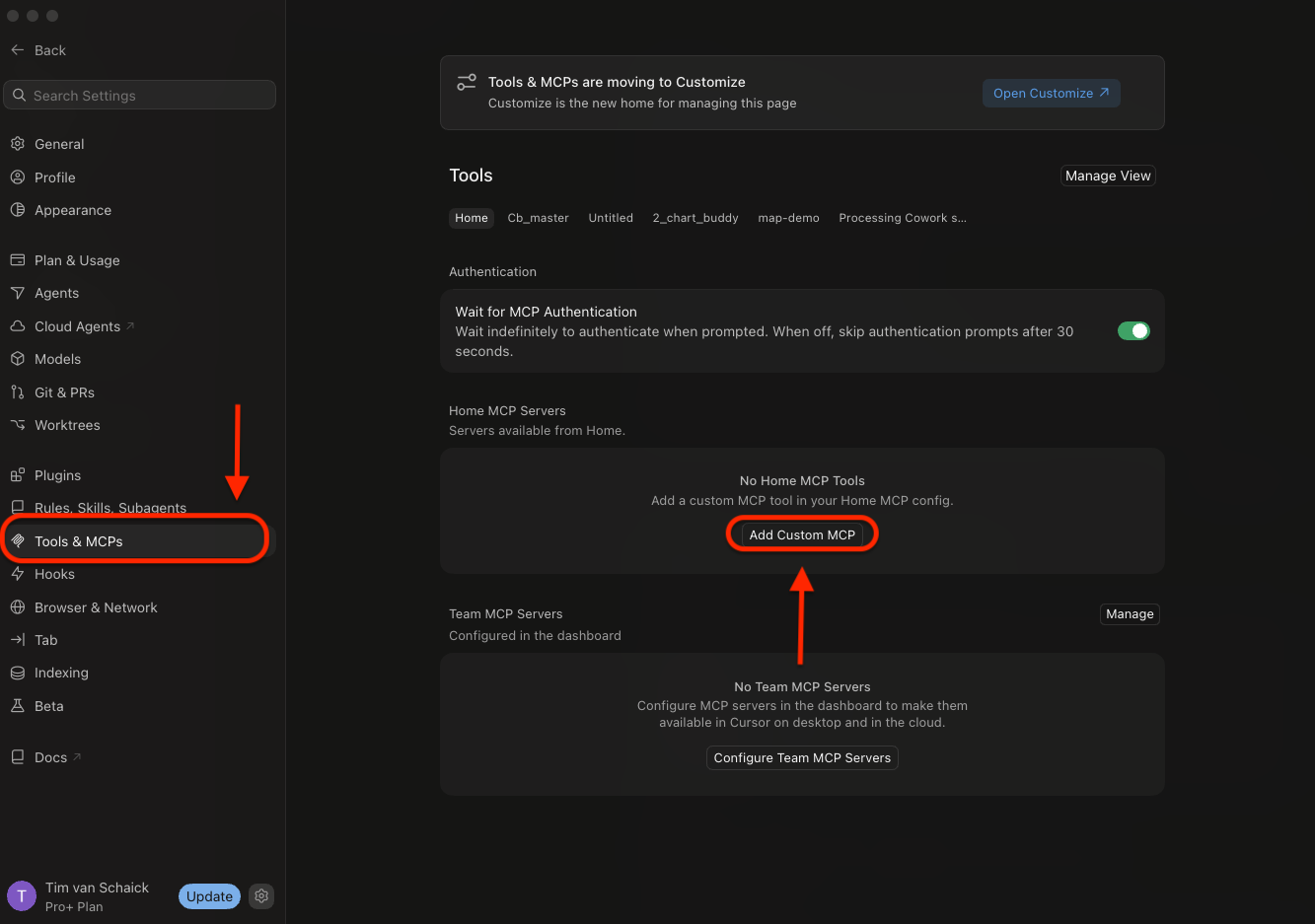

Open Cursor Settings → Tools & MCPs, then under Home MCP Servers click Add Custom MCP. That opens your user mcp.json (on macOS: ~/.cursor/mcp.json). Prefer this Home / global config — do not commit a project-scoped copy.

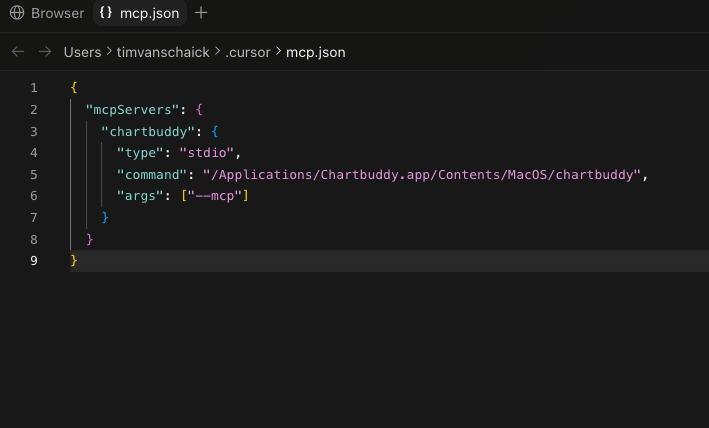

Paste the Chartbuddy server block (toggle OS below), then save the file:

Windows

{
  "mcpServers": {
    "chartbuddy": {
      "type": "stdio",
      "command": "C:\\Users\\YOUR_USER\\AppData\\Local\\Programs\\Chartbuddy\\chartbuddy.exe",
      "args": ["--mcp"]
    }
  }
}

macOS

{
  "mcpServers": {
    "chartbuddy": {
      "type": "stdio",
      "command": "/Applications/Chartbuddy.app/Contents/MacOS/chartbuddy",
      "args": ["--mcp"]
    }
  }
}

Windows install

A public Windows Chartbuddy Hub build is not shipping yet. Switch to the macOS tab until it does, then replace YOUR_USER (or use the path shown after install).

Prefer one global config. Duplicate global + project entries make it unclear which server the agent is using.

3. Refresh and use

Refresh MCP (or restart Cursor) and enable Chartbuddy for the chat. Mid-chat attach usually works after a refresh; if tools still do not appear, start a new agent chat.

Handoff

Optional context for a chat that will use the tools:

Chartbuddy MCP is configured (stdio → chartbuddy --mcp → Chartbuddy Hub).
Transport: newline JSON-RPC or Content-Length framed MCP — not HTTP docs.
Open charts: list_charts — Hub chart-* and CE ce:* (surface tauri|ce). get_active_chart prefers a focused CE session when the extension bridge is connected.
Missing tools usually mean the chartbuddy MCP server is off for the chat, or a new chat is needed.

Verify

Windows

& "$env:LOCALAPPDATA\Programs\Chartbuddy\chartbuddy.exe" --mcp-status

macOS

/Applications/Chartbuddy.app/Contents/MacOS/chartbuddy --mcp-status

Exit 0 = Chartbuddy Hub bridge up. Keep Chartbuddy Hub running while you chart.
